Description
please note:

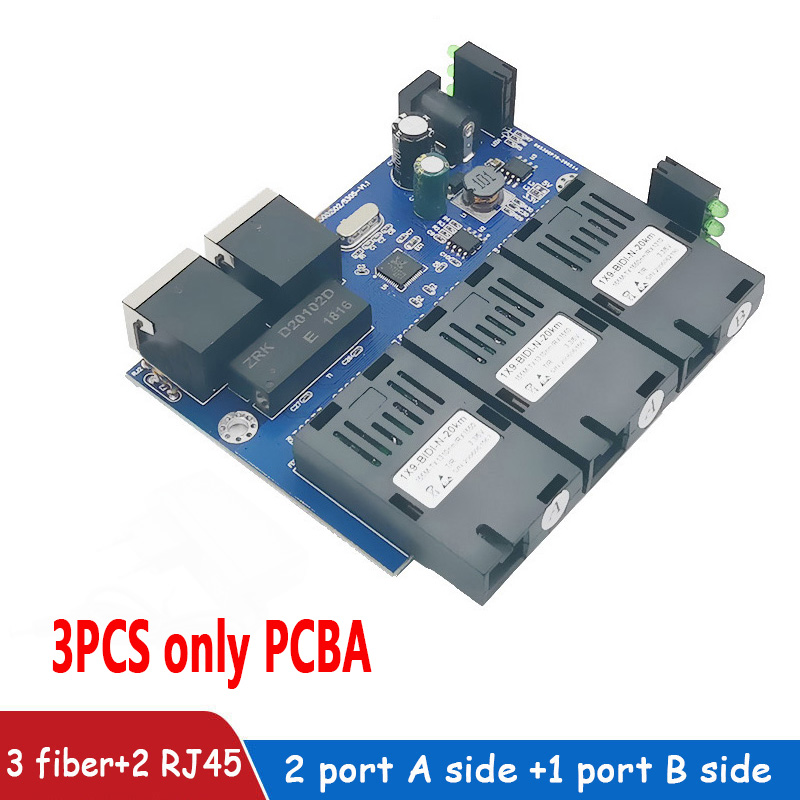

Default with 2pcs 1310nm A side Fiber module and 1pcs 1550nmB side.without power supply
Fast Ethernet Switch 10/100Base-Tx to 100Base-FX Fiber Switch
The Fast Ethernet Switch is an Ethernet Fiber Switch which is specially designed for network monitoring. It
has 4 10/100Mbps Ethernet ports and 2 155Mbps fiber ports. It adopts RTL8305NB chips to ensure
low power consumption and high stability. It extends the transmission distance of a network from
100m to 120km via copper cables. It can extend the transmission distance; there are also many other
advantages such as isolation protection, good data security, working stability and easy maintenance.
Main Features:
1.Support the switch between 10/100Base-TX and 100Base-FX
2.2*155M A and 1 155M B full-duplex fiber ports and 4*100M Ethernet ports with auto-negotiation function
3.Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function
4.Each port has the complete LED Indicator light
5.Support single mode single fiber,single mode dual fiber ,multi-mode dual fiber and SFP slot
6.Support IEEE802.1d Spanning Tree
7.Support high performance QoS function on each port
8.Support 5V voltage input
9.Support IEEE 802.3x flow control and back pressure control
10.Require no configuration and will instantly operate as soon as you power it up
11.Low power consumption chip with heat sink built in to ensure longtime efficient operation
Specifications:
Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree |
| Connector: RJ45 Data Rate:10/100M Distance: 100m UTP Type: UTP-5E or higher level |
Fiber Port | Connector: SC/FC/ST/SFP slot Data Rate:155M Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km |
Performance | Processing Type: Store and Forward MAC Table Size:4K/6K/8K Buffer Space:500kbs/1Mbit/2Mbit Jumbo Packet: 1518 bytes Back bandwidth:3.8G/5.6G/7.2G Time Delay: ＜150μs |
Power | Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5V Power Consumption: 2.2W～3.5W |
Transmissin Distance | Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode:3/20/40/60/80/100km |
MTBF | 100, 000 hours |
Warranty | 1 year |
Environment | Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation) |
Mechanical Structures | Dimension: 215×107×26mm Weight: 0.15 PCB main board |
OEM&ODM | Supportive |
