Packing specification: 1pc/box,
1 order = 1pc/box

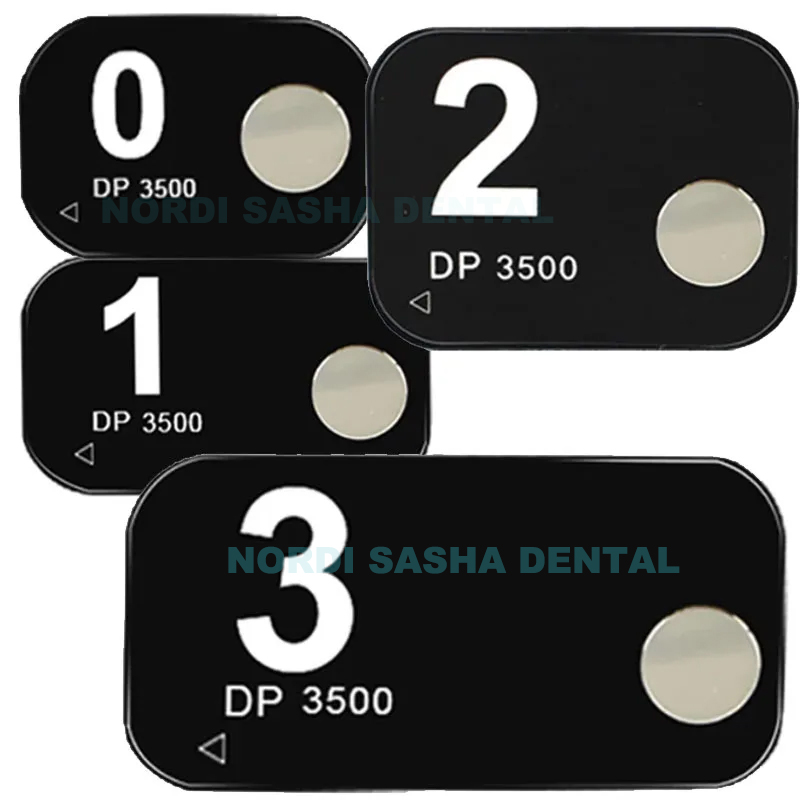

type: size 0 1 2 3 with magnetic
size 0 1 2 3 without magnetic
Image plate size 0: 22*31mm
Image plate size 1: 24*40mm
Image plate size 2: 31*41mm
Image plate size 3: 27*54mm
● Thickness at 0.1 mm & 270 degree bend
● 3 sizes optional 0# 1# 2#
● Rich images with diagnostic quality.
● Operate in normal room lighting.
● Package: 1 pc/box
● Maximizing product value: up to 2000 times for every piece of imaging plate
Phosphor Imaging Plates are a digital imaging system that reads the x-ray on a phosphor imaging plate and sends the image to your computer. These plates are as thin as a business card and are wireless.
These plates feature rich images of a diagnostic quality that are available in seconds and operate in normal room lighting-eliminating the need for a dark room.
Image board applicable brand breakdown:
Use manual:
1. Put the phosphor into the barrier envelope, and the white side of the phosphor is facing the black side of the barrier envelope
2. Tear off the white adhesive tape on the edge of the barrier envelope and seal the barrier envelope
3. When filming, the black surface of the barrier envelope is close to the teeth and aligned with the light outlet of the machine
4. After filming, tear off the plastic sleeve from the incision of the plastic sleeve, and after the host is ready, remove the phosphor film
Take out and insert into the host to read the image
